Testing and characterization capabilities available at KAIBELAB — with in-house equipment and access to specialized scientific infrastructure

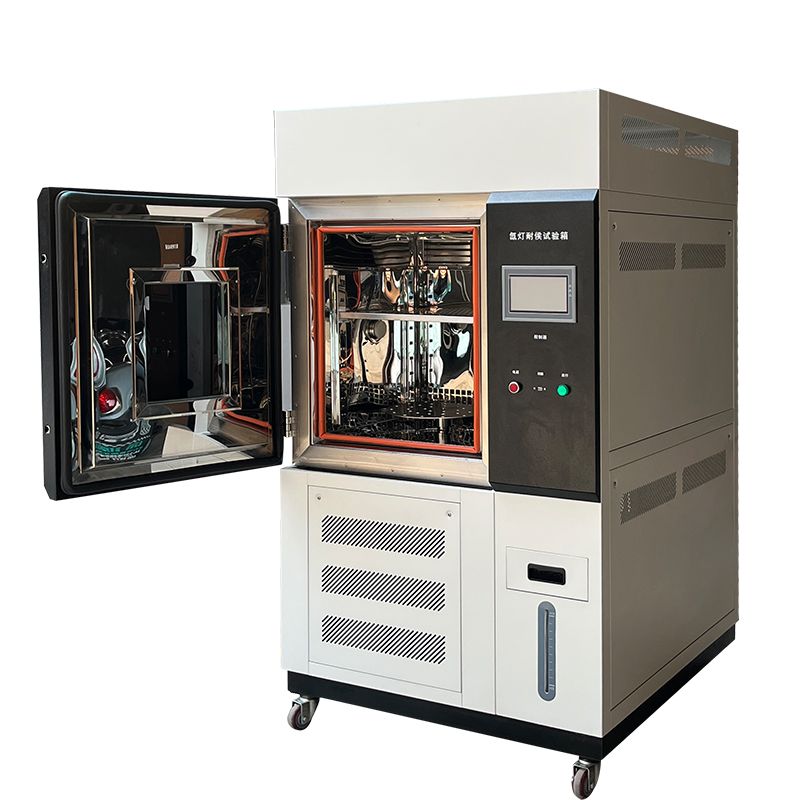

Xenon Weathering Chamber
Our flagship equipment simulates the full solar radiation spectrum to evaluate material durability under accelerated conditions. State-of-the-art equipment with U.S.-imported Xenon lamp.
- U.S.-imported Xenon arc lamp (1.8 kW)
- Temperature (63–100 °C) and relative humidity (65–98 %) control
- Programmable rain cycles (1–240 min)
- ASTM G155, ISO 105-B02, AATCC TM16, GB/T 8427 compliance
HD-E702 Climatic Chamber
Simulates controlled temperature and humidity conditions to evaluate the reliability and durability of electronic, automotive, plastic, and metal products under extreme environments.
- Temperature range: -40 °C to +150 °C
- Humidity control with ±2 %RH precision
- Internal volume: 408 liters
- IEC 68-2-30, GB/T 4857 compliance

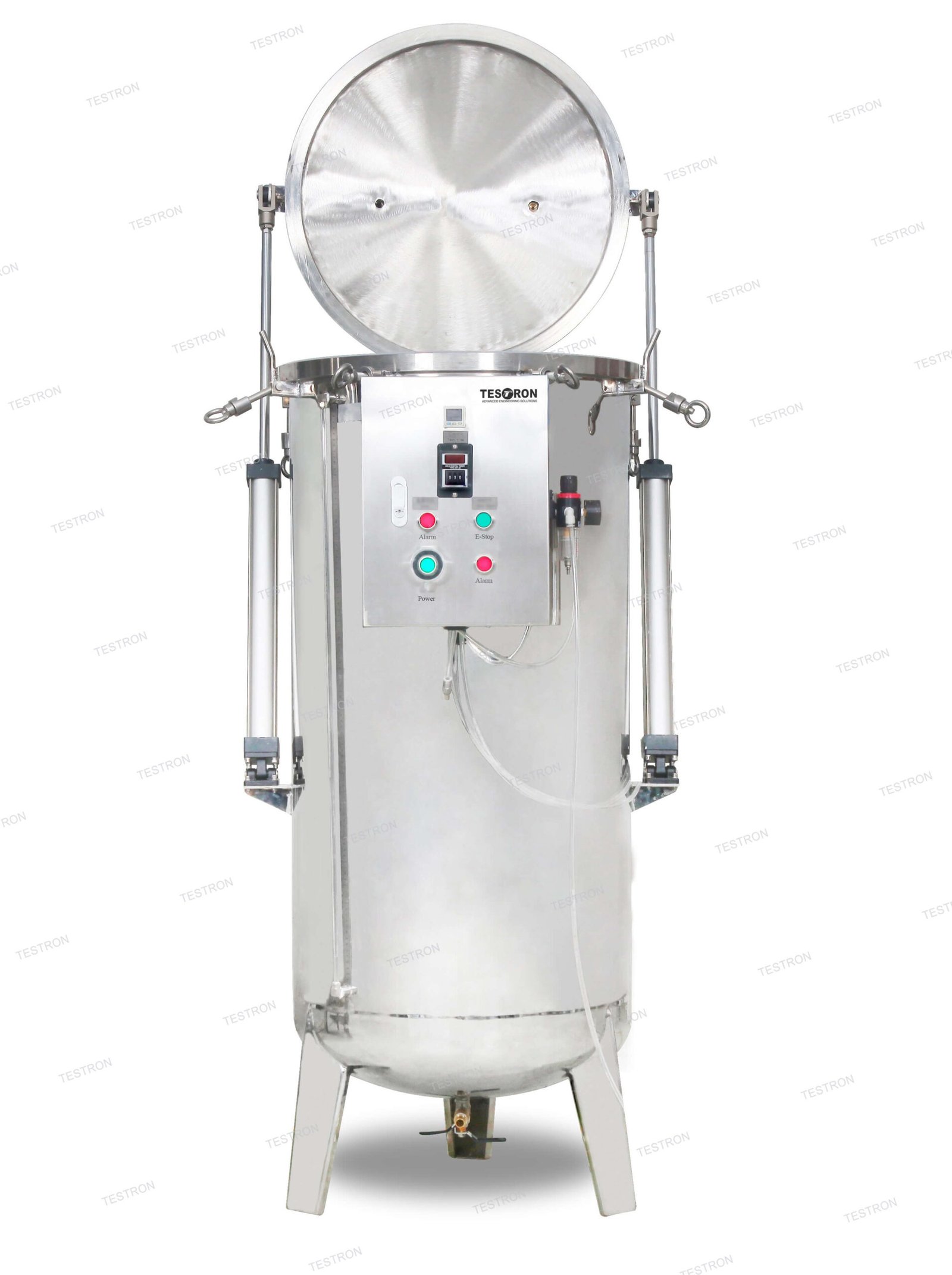

IPX8 Water Immersion Tank
Evaluates water resistance of electronic products, luminaires, and electrical components through continuous immersion under controlled hydrostatic pressure, simulating depths up to 50 meters.
- Simulated depth: 0–50 meters
- Inner tank Ø800×800 mm in SUS304 stainless steel
- Precision-controlled hydrostatic pressure
- IEC 60529, ISO 20653, GB 4208 compliance

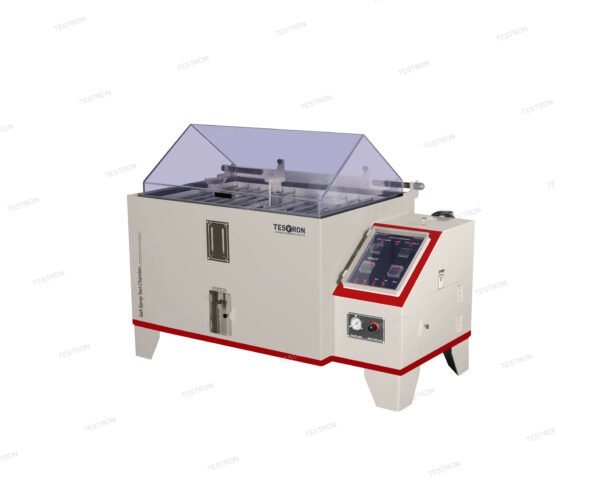

S-10 Salt Spray Chamber
Applies continuous salt fog to evaluate corrosion resistance of materials, coatings, and metal components. Simulates aggressive marine and saline environments.
- Chamber volume: 780 liters
- Temperature: ambient to +60 °C, humidity 95–98 %RH
- Deposition rate: 1–2 ml/80cm²/hr
- ASTM B117, ISO 9227, GB/T 10125 compliance

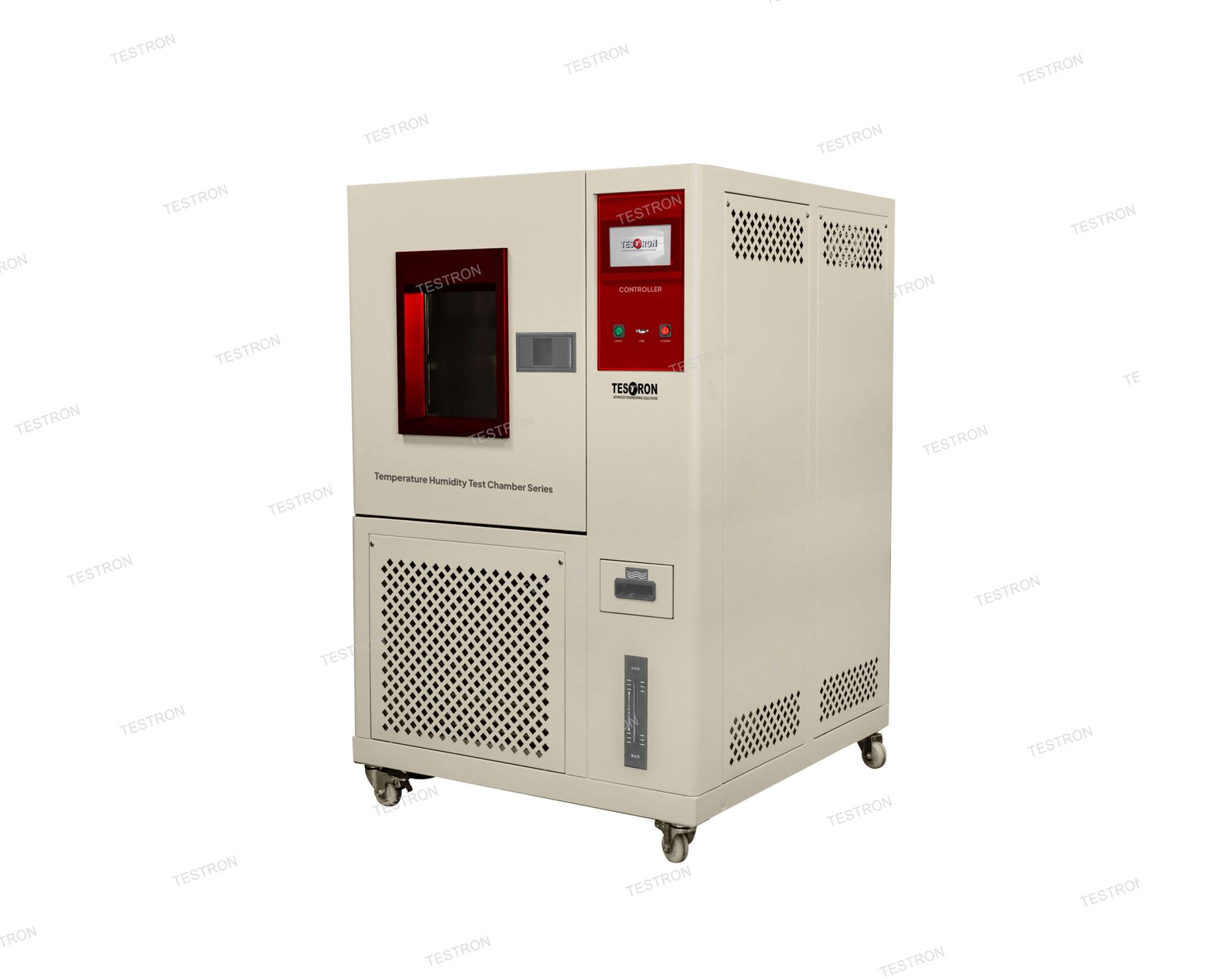

TCC-1000 Thermal Aging Chamber
Applies temperature cycling to evaluate the stability of materials, cables, and components under repeated thermal stress. Simulates storage, transport, and operation in thermally demanding environments.
- Temperature range: -40 °C to +130 °C
- Control accuracy: ±0.5 °C
- Interior dimensions: 1000×1000×1000 mm
- IEC 60794-1-2, IEC 60794-1-5 compliance
Laboratory Capabilities
Accelerated Weathering
Accelerated aging simulation using Xenon radiation. Durability evaluation of materials and coatings per ISO and AATCC standards.
Colorimetry & Gloss
Objective color and surface gloss measurement. Evaluation of changes caused by environmental exposure and aging.
Spectroscopy
Spectroscopic analysis of materials. Identification and characterization of molecular composition.
Material Evaluation
Comprehensive characterization of physical, mechanical, and chemical properties of industrial materials.
Specialized Measurement
Specialized measurement testing adapted to the specific technical requirements of each client.
Specialized Technical Support
Expert technical advisory, results interpretation, and support for research and development projects.
Complementary Capabilities
Through our Technical Partners, we extend our specialized service offering:
Environmental Testing
Temperature, salt spray, corrosion, and accelerated UV aging.
Mechanical Characterization
Tensile strength, Shore hardness, and corrosion analysis.
Thermal Analysis
Thermogravimetry (TGA) and Differential Scanning Calorimetry (DSC).
IR & Raman Spectroscopy
FTIR analysis, Raman spectroscopy, and gas chromatography.
Automotive supply chain and beyond
We serve Tier 1, 2, 3 & 4 companies and Research & Development Centers
If your organization requires material testing backed by international standards, KAIBELAB has the capacity and technical rigor to deliver.
